Technical Specifications Vidcom 42" |
Vidcom 42" Video Wall Display
- front / back

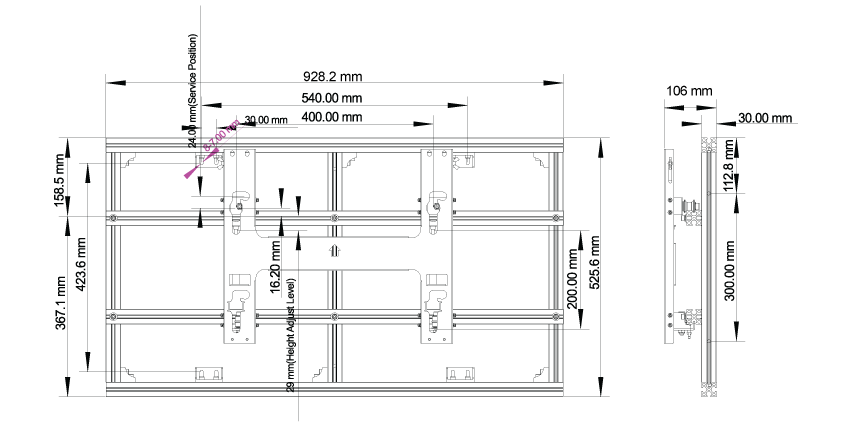

Vidcom 42" Video Wall Bracket
|
| Model |
C42PW120 |
| Screen Size |
42" (16:9) |
| Resolution |
1,024 (H) x 768 (V) |
| Peak Brightness |
700 (cd/m², with AG filter) |
| Contrast Ratio |
Typical 1,000,000 : 1 |
| Display Area (mm) |
925.2(H) x 522.7(V) ± 1(mm) |
| Filter Type |
AG Film Filter |
| Bezel (Seam Size) (mm) |
0.9 (1.8) |
| Operating Temperature |
0 ~ 40 °C |
| Outline Dimension (wxhxd) (mm) |
1,3221 * 745.6 * 55 |
| Weight (kg) |
16.8 |
| Expected Life-time |
100,000hrs |
| Input Voltage |
AC 100 ~ 240V, (50/60Hz) |
| Power Consumption |
Typical 360W |
| Accumulated Power Consumption |
Typical 133Wh |
| Accumulated Power Consumption |
Typical 0.17W/in2 |
| Input |
HDMI / RGB / DVI / RS232C / Display Port / Composite |
| Output |
DVI / RS232C / Sound out |
| USB |
1 (SVC only) |
| LAN (APL only) |
1 |
| LAN (Network control) |
1 |
| Function |
| 2 Modes (Standard / Studio) |
| Tile Mode (11 x 11) |
| Energy Saving Mode |
| Daisy Chain (DVI Max 9) |
|
| USP |
| 600Hz Sub-field Driving |
| Image Sticking (ISC) |
| Management Program (RS232C & Network) |
| St-By Power Consumption : 0.5W ↓ |
| DPM Power Management : 1W ↓ |
|
|
|
| |
|
|
