DVI Converter Specification |
 |
| Power supply |
100 - 250V AC, 50/60Hz |
| Power consumption |
40W (MAX) |
| Size |
405mm(W) X 250mm(D) X 60mm(H) |
| Environmental Condition |
0°C - 40°C,
20 - 80% RH |
| Weight |
3Kg |
| |
|
|
| Input/Output |
Terminal Name |
Terminal Specification |
|
| |
Composite Video |
BNC 1Pin |
NTSC, PAL, SECAM |
| |
S-Video |
DIN 4Pin |
NTSC, PAL, SECAM |
| |
Component Video |
BNC 3Pin |
480i, 576i, 480p, 576p, 720p, 1080i, 1080p |
| Video Input Signal |
Analog RGB |
D-Sub 15Pin
(Female) |
VGA, SVGA, WVGA, XGA, SXGA, WXGA, UXGA
Horizontal Freq. : 15.5Khz ~ 75Khz
Vertical Freq. : 50/60Hz |
| |
DVI / HDMI |
DVI-D 24Pin
(Female) /
HDMI 29Pin |
480p, 576p, 720p, 1080i, 1080p
VGA, SVGA, WVGA, XGA, SXGA, WXGA, UXGA
Horizontal Freq. : 15.5Khz ~ 75Khz
Vertical Freq. : 50/60Hz |
| |
SDI |
BNC 1Pin |
SMPTE 259M-C, SMPTE 292M,
SMPTE 424M, SMPTE 425 (Level A & B) |
| Video Output Signal |
DVI |
DVI-D 24Pin
(Female) |
640X480-60/85, 800X600-50/60/85, 853X480-50/60, 1027X768-60/85, 1280X1024-50/60, 1600X900-50/60, 1600X1200-50/60, 1706X960-60 |
| Control Method |
RS-232C |
D-Sub 9Pin
(Female) |
Baud Rate : 115200
Max ±15V |
| |
Ethernet |
RJ-45 |
TCP/IP |
| |
Key Pad |
|
Input Souce Select Hot Key, Output Resolution Select Hot Key, Navigation Key(OSD), Control Channel Select, Communication Method Select. |
| Display |
STN LCD |
2X16 |
Input Souce, Output Resolution Display |
| |
 |

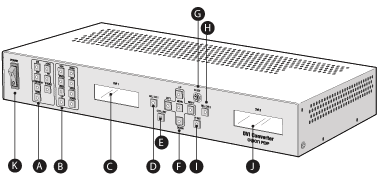

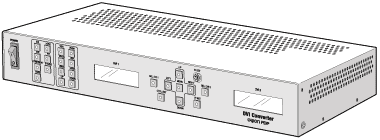

| DVI Converter Front |
A. Input Source
| |
DVI, HDMI, SDI, PC, COMPONENT, S-VIDEO, VIDEO |
|
B. Output Resolution
| |
VGA, SVGA, WVGA, XGA, SXGA, UXGA, UP, DOWN |
|
C. DVI1 Status Display
| |
Display the version information of DVI converter
channel 1, when DIV converter is booted. |
|
| D. DVI1
Select - Select DVI 1 channel. |
E. Serial/Ethernet Select
| |
Select communication mode between
Serial
(RS-232C) or Ethernet (LAN) |
|
F. Navigation Key
| |
Keys to control OSD "MENU, LEFT, RIGHT, UP, DOWN" |
|
| G. Rotary Switch - Set the ID. |
| H. DVI2 Select - Select DVI 1 channel. |
I. Ethernet IP Setting
| |
Ping test for Ethernet communication mode. |
|
J. DVI2 Status Display
| |
Display the version information of DVI converter
channel 1, when DIV converter is booted. |
|
K. Power ON/OFF Switch
| |
Power On/Off switch. (AC 100~240V, 50/60Hz). |
|
|
|
 |

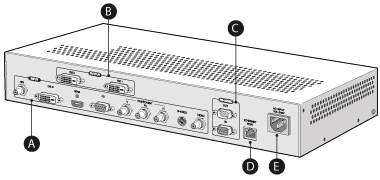

| DVI Converter Back |
A. INPUT
| |
SDI: |
Y/Cb/Cr signal, BNC Connector |
| |
DVI-D: |
TMDS signal, DVI Connector |
| |
HDMI: |
TMDS signal, HDMI Connector |
| |
PC: |
Computer RGB analog signal, D-Sub 15Pin |
| |
COMPONENT: |
DVD signal, DTV-YPbPr signal,
BNC Connector |
| |
S-VIDEO: |
S-Video signal (Y/C), NTSC, PAL,
SECAM, 4Pin Mini Din |
| |
VIDEO: |
Composite signal, NTSC, PAL,
SECAM,
BNC Connector |
|
B. OUTPUT
| |
DVI1: |
TMDS signal, DVI Connector |
| |
DVI2: |
TMDS signal, DVI Connector |
|
C. RS-232C
| |
IN: |
DVI Converter control, Daisy-chain input,
Firmware Update, 9Pin D-Sub |
| |
OUT: |
Daisy-chain output |
|
D. ETHERNET PORT
| |
IEEE Standard UTP Cable, RJ45 Connector |
|
| E. AC INPUT
|
|
| |
|
|
|
|
