Wall Bracket and Stand |

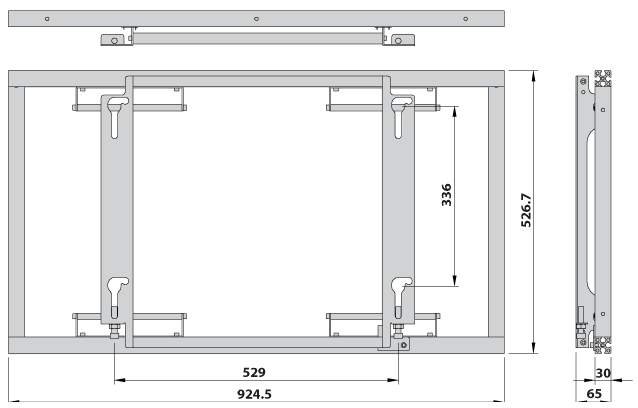

| Video Wall Bracket |
|
| External dimension |
924.5mm[W] X 526.7mm[H] X 65mm[D] |
| Weight |
7kg (±0.5kg) |
|
 |
| |
N X 2 |
|
N X 3 |
|
N X 4 |
|
N X 5 |

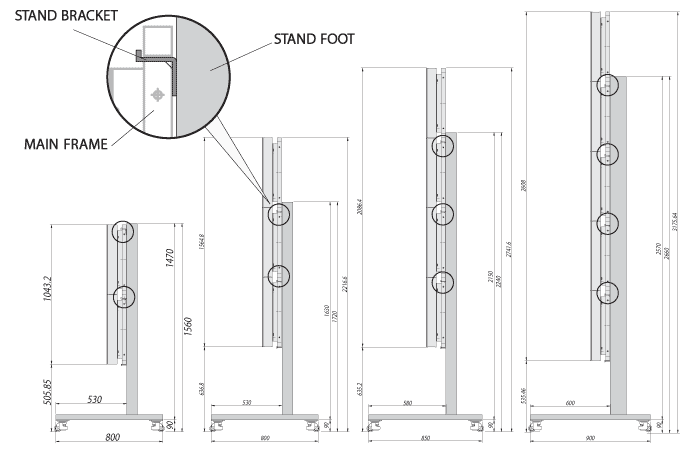

In case of NX3, NX4, or NX5 set formations, there is no stand bracket for the top
line of main frames.
However, it is designed to firmly fasten the main frames of the top line to the main
frames of the next line. |
|
|
