The ScreenLifter
Design Stand

Using the ScreenLifter, the handling and setup of the newest generation of 103“ large displays becomes a mere child's play.
At the touch of a button the up to 500 lb heavy display unloads
itself from the flight case. Thanks to the precise heavy-duty lifting mechanism, the ScreenLifter allows stepless adjustment of the display height. The display can even be rotated into portrait orientation.

Panasonic-ScreenLifter-103-rotate-system

The ScreenLifter with its integrated shock absorbing system combines a secure and convenient storage and transport system with a stylish designstand that allows the tool-free setup of the display by just one person. The display is permanently attached to the ScreenLifter, which significantly reduces the risk of damage during handling and saves precious time and cost of labor.

integrated-control-panel
Comfortable height-positioning either with the integrated control-panel with LED display, or with a wired remote control, available as an optional accessory.

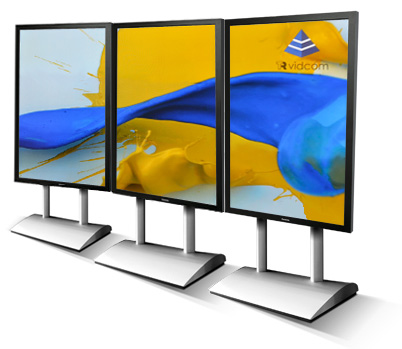

Panasonic-103-screenlifter-portrait

The elaborate design of the ScreenLifter allows side-by-side placement of the screens to create “video walls”. For video walls in portrait format, inexpensive optional equipment is available.

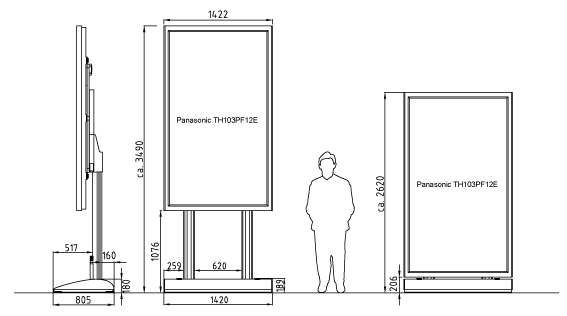

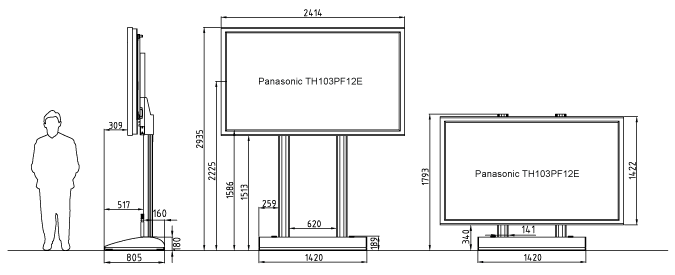

Technical Specifications for Panasonic Screen 103"

Panasonic 103" with ScreenLifter
Video Demo




Dimensions (L x W x H): 1420x802x1739mm/55.9”x31.6”x70,6”
Max. height lower edge
of displayed image:
approx. 1600 mm/63” (landscape)
approx. 1100 mm/43.3” (portrait)
Max. height of system: approx. 2950 mm/116.1” (landscape)
approx. 3440 mm/135.4” (portrait)


Rotation angle display: clockwise, up to 90°
Weight w/o display: approx. 223 kg/492lb

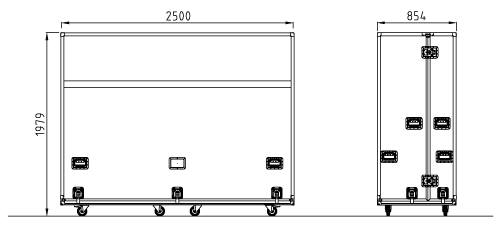

Dim. flightcase (L x W x H): 2535 x 860 x 1980 mm/99.8”x33.9”x88”
Weight of flightcase: approx. 211 kg/466lb
Standard color: aluminium anodized EV1, RAL 9011
Options: any RAL color of choice, wired remote control
